带独立操作钥匙的开关

S20 和 S200 系列安全开关带有独立的操作钥匙，坚固的外壳和多种安装方案使他们能得到广泛使用。它们有五个不同的操作钥匙驱动方向。借助其漏斗型的插入开口，操作钥匙仍可自行对中，提高了运行的可靠性。不同的触点、通过电缆或插头连接以及多种操作钥匙，可为您的应用提供合适的解决方案。

Advantages for you

Low-cost solutions: for monitoring doors and flaps
Easy integration in safety circuit: All devices can easily be integrated in a safety circuit through positive-opening contacts
Easy adaptation to different installation situations: With 5 actuator approach directions
Avoidance of unwanted machine downtimes: Through generously dimensioned actuator play in the actuator head

Highlights

A wide range of actuators ensures that appropriate installation options are always available for your machine or system. For all actuators, the switches have generously dimensioned play of up to 4.5 mm in the actuator head. As a result, slight movements of the protective device do not lead to unwanted machine downtimes.

Technical properties

	S20 / S200
	Type 2 interlock device without guard interlocking in acc. with EN ISO 14119

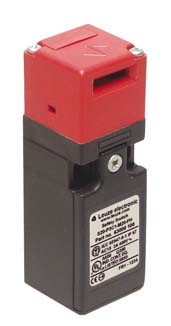

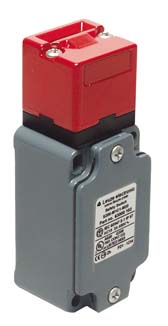

	S20: Technopolymer housing, degree of protection IP 67; S200: Metal housing, degree of protection IP 67
	Actuator with mechanical tongue and low coding level in acc. with EN ISO 14119
	Positive-opening contacts for integration in a safety circuit
	Easy mounting with standard construction
	The head is adjustable in 90 degree increments. In combination with entry from above, 5 approach directions are available for the actuators.
	Up to 8 different actuators
	High-quality silver contacts for long life expectancy
